Product details
Single Plate Elements
SP26.250 series
Single Plate Element
Structural element
Module 250 mm

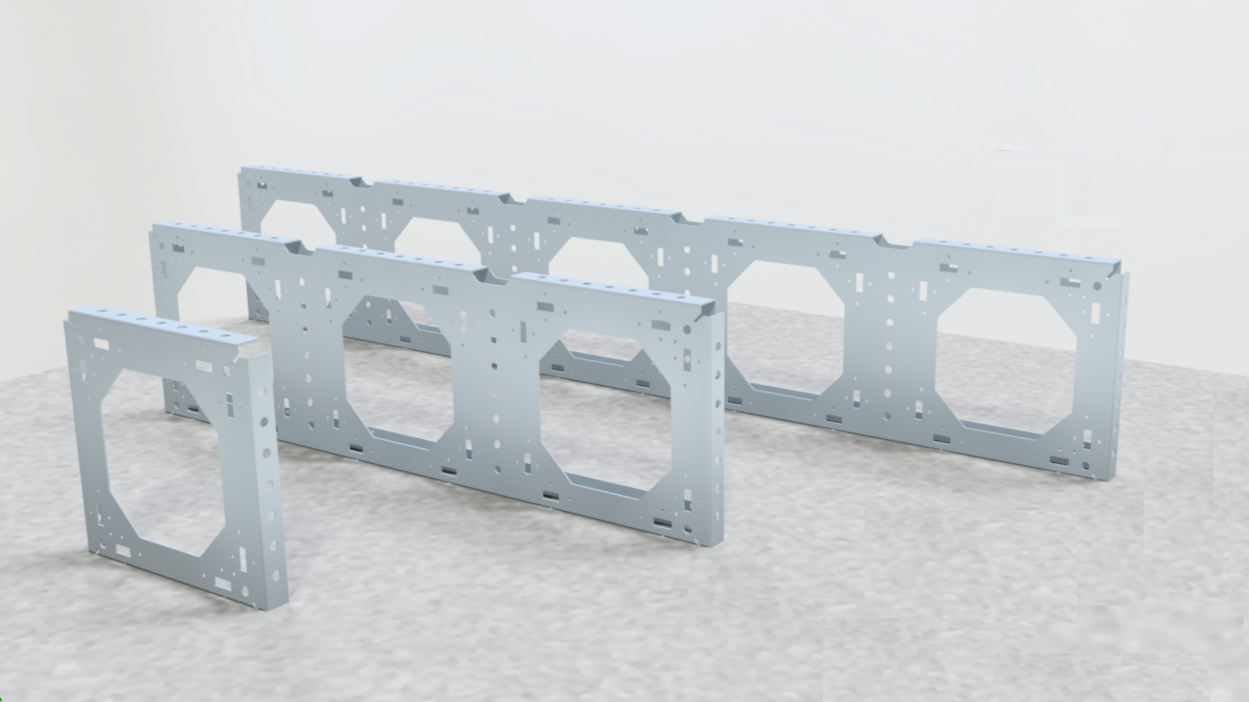

Product image
Specifications
Product name
Product number
Material
Sheet thickness
Hole size edge side
Passage opening:
Single Plate Element
SP26.250 - serie
Steel (sheet)
1.5 mm
8.5 mm
145 mm
Product variants
Product number
SP26.250.001
SP26.250.002
SP26.250.003
SP26.250.004
SP26.250.005
SP26.250.006
SP26.250.007
SP26.250.008
SP26.250.009
SP26.250.010
SP26.250.011
Modular dimensions
250 × 250 × 25
500 × 250 × 25
750 × 250 × 25
1000 × 250 × 25
1250 × 250 × 25
1500 × 250 × 25
1750 × 250 × 25
2000 × 250 × 25
2250 × 250 × 25
2500 × 250 × 25
2750 × 250 × 25
Weight ‘
0.53 kg
1.41 kg
2.13 kg
2.84 kg
3.55 kg
4.26 kg
4.98 kg
5.69 kg
6.40 kg
7.12 kg
7.83 kg
Surface treatment options:
- Sendzimir (Zn)
- Magnelis (Zn-Mg)
